Understanding 1/2×28 and 5/8×24 Threads

If you’re shopping for a suppressor mount, muzzle device, or silencer timing device, one of the first specifications you’ll encounter is barrel thread size. Terms such as 1/2×28 and 5/8×24 are common, but understanding exactly what those numbers mean is important when selecting compatible accessories.

Barrel thread sizes determine which muzzle devices and suppressor accessories (which are becoming more popular with the NFA updates) can properly attach to a threaded barrel. While 1/2×28 and 5/8×24 are among the most common thread patterns used on firearms in the United States, they aren’t interchangeable.

For shooters using compatible threaded barrels, Heresy Design offers Silencer Timing Devices (S.T.D.) in both 1/2-inch and 5/8-inch configurations, providing a purpose-built solution for timing compatible muzzle devices.

Let’s break it down.

What Is a Barrel Thread Size?

A barrel thread specification describes the diameter and pitch of the threads machined into the muzzle of a barrel, whether that is a defensive rifle, a training firearm, or just a range plinker.

For example:

1/2×28

• 1/2 inch = approximate thread diameter
• 28 = 28 threads per inch

5/8×24

• 5/8 inch = approximate thread diameter
• 24 = 24 threads per inch

The two specifications have different diameters and different thread pitches. As a result, a muzzle device designed for 1/2×28 threads generally cannot be installed directly onto a barrel with 5/8×24 threads.

Barrel threading can vary by firearm, caliber, manufacturer, and specific model, so shooters should always verify the exact thread specification before purchasing an accessory.

What Does 1/2×28 Mean?

1/2×28 is one of the most common barrel thread sizes found on modern firearms.

The first number, 1/2, refers to the nominal thread diameter. The second number, 28, indicates that there are 28 threads per inch.

1/2×28 is widely encountered on smaller-caliber firearms and is also common on many 9mm platforms. SilencerCo, for example, identifies 1/2×28 as a common thread specification for 9mm centerfire pistol barrels.

This makes 1/2×28 an important thread pattern for shooters shopping for compatible muzzle devices, suppressor mounts, and timing accessories.

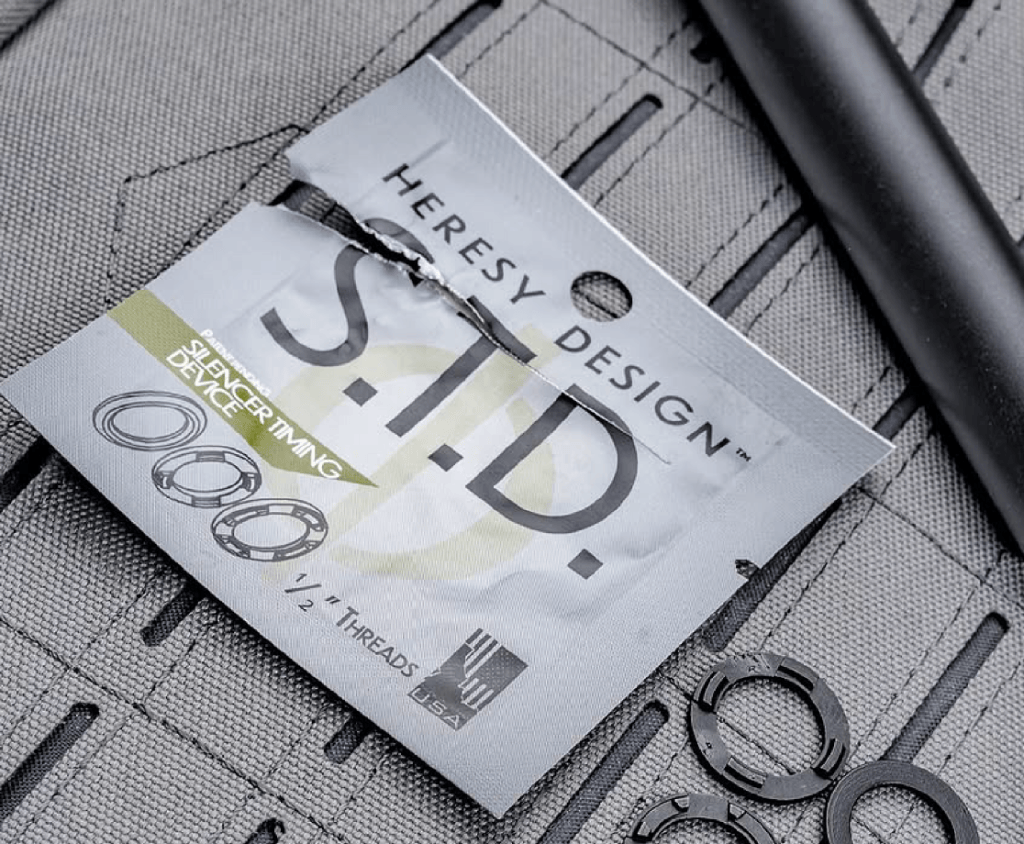

Heresy Design 1/2-Inch Silencer Timing Device

For compatible 1/2-inch threaded barrels, Heresy Design offers its Silencer Timing Device.

The S.T.D. is designed to simplify the process of timing compatible muzzle devices by using a purpose-built washer system rather than requiring users to sort through a collection of individual shims.

The 1/2-inch version features:

• Compatibility with 1/2-inch threaded barrels
• 12L14/4140 steel construction
• Black oxide finish
• 0.510-inch inside diameter
• 0.750-inch outside diameter
• Made in the USA

The result is a compact timing solution designed for shooters who want a straightforward way to establish the appropriate orientation of a compatible muzzle device.

What Does 5/8×24 Mean?

5/8×24 is another extremely common barrel thread specification, particularly on larger-caliber rifles.

The 5/8-inch measurement describes the nominal thread diameter, while 24 indicates 24 threads per inch.

5/8×24 is frequently found on barrels chambered in calibers around .243 through .30 caliber, although the exact thread specification can vary based on the firearm and barrel design. Silencer Central, for example, lists 5/8×24 as a common default for .243 through .358 caliber barrels when the barrel diameter supports it.

It’s also commonly associated with platforms chambered in .308 Winchester, 7.62mm, and .300 Blackout.

Heresy Design 5/8-Inch Silencer Timing Device

Heresy Design also offers a Silencer Timing Device for 5/8-inch threaded barrels.

The 5/8-inch model is designed around the same basic concept as the 1/2-inch version: providing a purpose-built washer system for timing compatible muzzle devices.

Specifications include:

• Compatibility with 5/8-inch threaded barrels
• 12L14/4140 construction
• Black oxide finish
• 0.625-inch inside diameter
• 0.875-inch outside diameter
• Made in the USA

For shooters with compatible 5/8×24 setups, this provides a compact alternative to conventional shim-based timing methods.

1/2×28 vs. 5/8×24: What’s the Difference?

The easiest way to understand the difference is to look at the numbers.

1/2×28

• Nominal diameter: 1/2 inch
• Threads per inch: 28
• Common applications: Smaller-caliber firearms and many 9mm platforms
• Common examples: 5.56 NATO, .223 Remington, and 9mm
• Heresy Design option: 1/2-inch Silencer Timing Device

5/8×24

• Nominal diameter: 5/8 inch
• Threads per inch: 24
• Common applications: Many larger-caliber rifle barrels
• Common examples: .308 Winchester, 7.62mm, and .300 Blackout
• Heresy Design option: 5/8-inch Silencer Timing Device

These are only general guidelines. Barrel thread patterns are not determined by caliber alone, and exceptions exist. Manufacturers can use different thread specifications depending on barrel diameter, firearm design, and intended application.

Always verify the exact thread specification for your firearm or barrel before purchasing a muzzle device or timing accessory.

This is only a general guide. Barrel thread patterns are not determined by caliber alone, and exceptions exist. Manufacturers can use different thread specifications depending on barrel diameter, firearm design, and intended application. Savage Arms, for example, notes that muzzle threads can vary by specific model and caliber.

Why Is Thread Pitch Important?

Thread pitch is critical because the threads on the barrel and the threads inside the mating accessory need to match.

A specification such as 1/2×28 contains two separate pieces of information:

1/2 inch tells you the nominal diameter.

28 tells you the thread pitch in threads per inch.

A 1/2×28 accessory and a 1/2×36 accessory may have the same nominal diameter but different thread pitches. That means diameter alone isn’t enough to determine compatibility.

The same principle applies when comparing 1/2×28 and 5/8×24. Both are common firearm thread patterns, but they are different specifications.

Never assume compatibility based solely on the caliber or the apparent size of the threads.

How Do You Know What Thread Size Your Barrel Has?

The best way to determine your barrel thread size is to consult the firearm or barrel manufacturer’s specifications.

Your owner’s manual, barrel documentation, manufacturer website, or a qualified gunsmith can help confirm the correct specification.

You may also encounter the thread specification stamped or documented elsewhere depending on the firearm.

If you’re unsure, don’t guess.

Thread dimensions can vary even among firearms chambered in the same caliber. A qualified gunsmith can verify the thread specification and ensure that the barrel and muzzle device are appropriate for one another.

Why Does Muzzle Device Timing Matter?

 Some muzzle devices need to be installed in a specific orientation.This is commonly referred to as timing the muzzle device.

Traditional installation methods can involve using shims or other components to achieve the desired final orientation. The challenge is finding the appropriate combination without excessive trial and error.

Heresy Design’s Silencer Timing Device uses a three-washer system designed to provide different stack heights for timing compatible muzzle devices, like suppressors to help avoid things like baffle strikes.

The goal is to make the timing process more straightforward and repeatable.

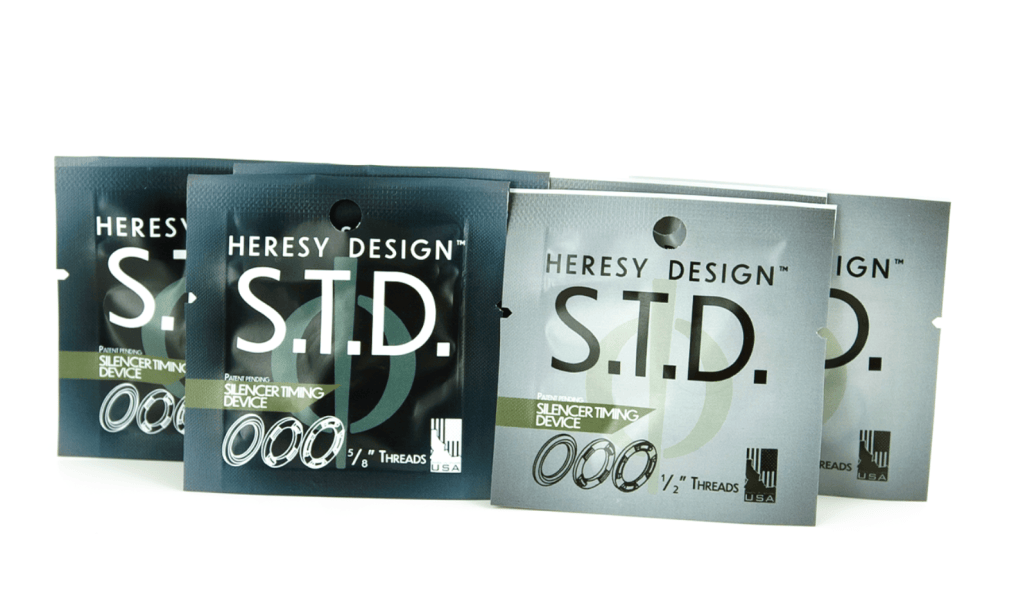

Choosing the Right Heresy Design Silencer Timing Device

The most important factor when selecting a Heresy Design S.T.D. is the thread specification of your barrel.

Choose the 1/2-Inch S.T.D. If:

• Your barrel uses compatible 1/2-inch threads
• You’re installing a compatible muzzle device
• You want a purpose-built timing solution
• You want an alternative to traditional shim stacks

Choose the 5/8-Inch S.T.D. If:

• Your barrel uses compatible 5/8-inch threads
• You’re installing a compatible muzzle device
• You need a timing solution for a larger threaded barrel
• You want the same three-washer concept in a 5/8-inch configuration

Always verify the complete thread specification—not just the nominal diameter—before installation.

Common Barrel Thread Sizes

Although 1/2×28 and 5/8×24 are two of the most common thread patterns, they’re not the only ones you’ll encounter.

Depending on the firearm, caliber, and manufacturer, shooters may encounter specifications such as:

• 1/2×28
• 5/8×24
• 1/2×36
• .578×28
• 9/16×24
• 9/16×28
• Metric thread patterns

For example, .578×28 is commonly encountered on .45 ACP handguns, while some European firearms use metric thread specifications.

This is why verifying the exact barrel specification before ordering a muzzle device or timing accessory is so important.

Can You Use a 1/2-Inch Timing Device on a 5/8-Inch Barrel?

No. The Heresy Design S.T.D. should be matched to the compatible thread size of the barrel and muzzle-device setup.

A 1/2-inch timing device and a 5/8-inch timing device are designed for different nominal thread diameters.

If your barrel is threaded 5/8×24, use the appropriate 5/8-inch S.T.D. Likewise, a compatible 1/2×28 setup calls for the 1/2-inch version.

Do not attempt to force an incompatible accessory onto a threaded barrel.

Thread Size Is Only One Part of Compatibility

While matching the thread specification is essential, it isn’t the only consideration when installing a suppressor-related accessory.

Shooters should also consider:

• Barrel and muzzle-device compatibility
• Proper shoulder engagement
• Correct installation procedures
• Manufacturer-specified torque
• Thread condition
• Bore and muzzle-device alignment
• Suppressor compatibility

Proper alignment is particularly important when a suppressor is involved. Heresy Design states that its barrels are designed to work with suppressors and that their threads should be concentric to the bore.

For suppressor setups, always follow the suppressor and muzzle-device manufacturer’s installation instructions and verify alignment before firing.

Why Use Heresy Design Silencer Timing Devices?

Heresy Design’s Silencer Timing Devices are designed to address a simple but important part of muzzle-device installation: achieving the desired timing without relying on a large assortment of individual shims.

Available in 1/2-inch and 5/8-inch configurations, the S.T.D. gives shooters a dedicated timing solution for compatible threaded barrels.

The devices are manufactured from 12L14/4140 steel and finished in black oxide, with Heresy Design manufacturing the components in the USA.

Whether you’re working with a common 1/2×28 setup or a 5/8×24 barrel, selecting the correct S.T.D. configuration starts with knowing your barrel’s exact thread specification.

Final Thoughts

Understanding barrel thread sizes makes it much easier to select compatible muzzle devices and suppressor accessories.

The two specifications you’ll encounter frequently are 1/2×28 and 5/8×24. While 1/2×28 is common on smaller-caliber firearms and many 9mm platforms, 5/8×24 is widely used on larger-caliber rifle barrels. However, these are general patterns rather than universal rules, so always verify the specifications for your exact firearm or barrel.

For shooters using compatible setups, Heresy Design offers Silencer Timing Devices in both 1/2-inch and 5/8-inch configurations. By providing a purpose-built washer system for timing compatible muzzle devices, the S.T.D. can simplify an otherwise tedious installation process.

Before purchasing, confirm your barrel’s exact thread specification and make sure every component in your setup is compatible. When it comes to threaded barrels and suppressor-related equipment, getting the details right matters.
